890-102 | WAGO

Socket, 2 pole, cable assembly, push-in, 0.25-1.5 mm², black, 890-102

Order No.: 46F8308
EAN: 4045454231729
MPN:
890-102
Series: WINSTA MINI

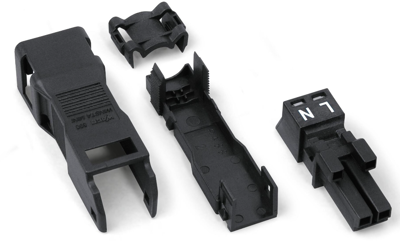

890-102 WAGO Device Connectors Image 1
890-102 WAGO Device Connectors Image 2
890-102 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
3.8199 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.8199 €

Socket, 890-102, WAGO

Socket, with strain relief housing, 2-pole, code A, 1.50 mm², black.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 2 pole
Power switch available No
Colour black
Rated current UL/CSA 14 A
Cable cross-section 0.25-1.5 mm²
Connection push-in
Assembly cable assembly
Pin temperature 85 °C
Design straight
Rated current IEC 16 A
Cable diameter 3.8 to 8.2 mm
Type of locking Yes
Switch illuminated No
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
