831-3205/1020-050 | WAGO
Plug, 5 pole, snap-in, push-in, 0.5-6.0 mm², white, 831-3205/1020-050
Unit Price (€ / pc.)
15.7794 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
15.78 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7794 €
10 pcs.
14.5180 €
50 pcs.
13.2090 €
100 pcs.
11.8881 €
*incl. VAT plus shipping costs
Subject to prior sale

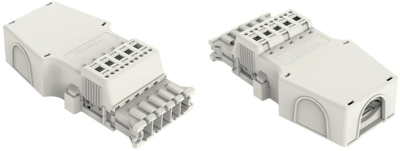

Plug, 831-3205/1020-050, WAGO
The 831-3205/1020-050 is a male connector/plug that supports fast and reliable installation. Whether on PCBs, in control cabinets or for connecting lights this pluggable installation connector allows you to make connections according to a huge variety of requirements in next to no time.
Features
- Protection against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Applications
- For power applications
- For lighting applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Rated current IEC | 35 A | |
| Cable cross-section | 0.5-6.0 mm² | |
| Rated voltage IEC | 400 V | |
| Design | straight | |
| Pin temperature | 85 °C | |
| Connection | push-in | |
| Colour | white | |
| Product type | plug | |
| Cable diameter | 13 to 18 mm | |
| Assembly | snap-in |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
