831-3105/1019-004 | WAGO

Socket, 5 pole, snap-in, push-in, 0.5-6.0 mm², black, 831-3105/1019-004

Order No.: 45P1997
EAN: 4055143500739
MPN:
831-3105/1019-004
Series: WINSTA MAXI

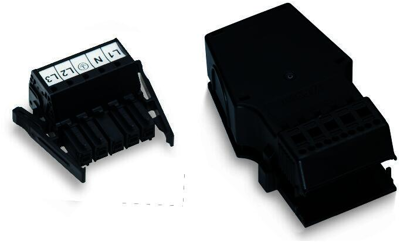

831-3105/1019-004 WAGO Device Connectors Image 1
831-3105/1019-004 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.7318 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
15.73 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7318 €
10 pcs.
14.4704 €
50 pcs.
13.1733 €
100 pcs.
11.8524 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket, 831-3105/1019-004, WAGO

Socket with strain relief housing, 5-pole, code A, 6.00 mm², black.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For power applications
  • For lighting applications
Technical specifications
Anschluss Push-in
Ausführung Buchse
Bauform gerade
Farbe schwarz
Kabeldurchmesser 13 bis 18 mm
Leiterquerschnitt 0,5-6,0 mm²
Montage Snap-in
Nennspannung IEC 400 V
Nennstrom IEC 35 A
Polzahl 5-polig
Stifttemperatur 85 °C
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
