770-994 | WAGO

H-distributor, 4 pole, gray, 770-994

Order No.: 44P7326
EAN: 4045454982041
MPN:
770-994
Series: WINSTA MIDI

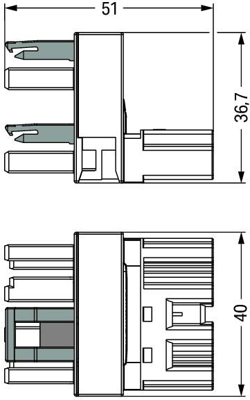

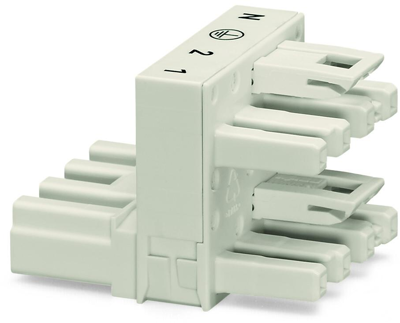

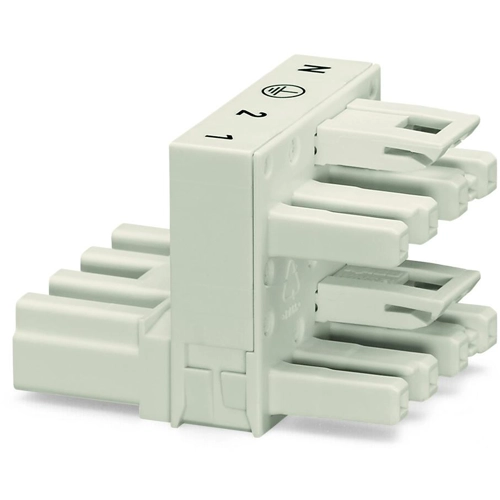

770-994 WAGO Device Connectors Image 1
770-994 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.6267 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
10.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.6267 €

H-distributor, 770-994, WAGO

H-distribution connector, 4-pole, code A, 1 input, 2 outputs, outputs on one side, 2 locking levers, white.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour gray
Version H-distributor
Rated voltage UL/CSA 600 V
Line filter present No
Rated current UL/CSA 23 A
Switch illuminated No
Type of locking Yes
Rated voltage IEC 400 V
Pin number 4 pole
Rated current IEC 25 A
Power switch available No
Pin temperature 85 °C
Fuse holder present No
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
