770-977/076-000 | WAGO

H-distributor, 3 pole, snap-in, spring-clamp connection, light turquoise, 770-977/076-000

Order No.: 44P8926
EAN: 4055143767200
MPN:
770-977/076-000
Series: WINSTA MINI

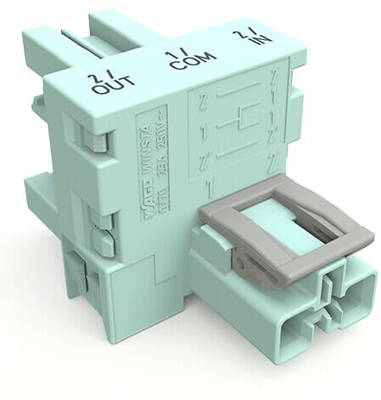

770-977/076-000 WAGO Device Connectors Image 1

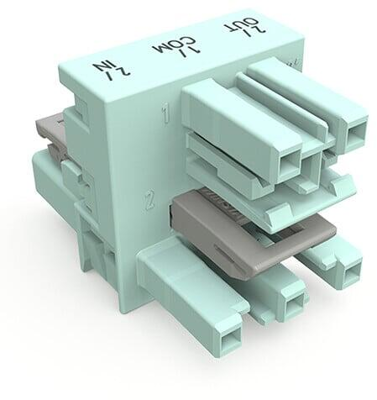

770-977/076-000 WAGO Device Connectors Image 2

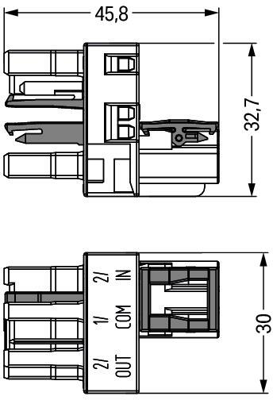

770-977/076-000 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
14.6608 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
14.6608 €

Distributor, 770-977/076-000, WAGO

The WINSTA MIDI distribution connector with locking latch supports rapid, correct installation. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This pluggable installation connector is designed for a current load of up to 25 A. Thus, it can also be used for high power loads. WINSTA MIDI with Push-in CAGE CLAMP spring pressure connection technology is found in a broad range of individual products you can use for quick, easy, flexible, and secure installation.

Features

  • With B coding for controllers such as lighting fixtures and sun blinds
  • Exact dimensions
  • Convenient installation and commissioning
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 3 pole
Power switch available No
Colour light turquoise
Rated current UL/CSA 23 A
Connection spring-clamp connection
Assembly snap-in
Fuse holder present No
Line filter present No
Design straight
Rated current IEC 25 A
Type of locking Yes
Switch illuminated No
Product type H-distributor
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
