770-974/076-000 | WAGO

H-distributor, 3 pole, snap-in, spring-clamp connection, light turquoise, 770-974/076-000

Order No.: 44P8925
EAN: 4055143767170
MPN:
770-974/076-000
Series: WINSTA MINI

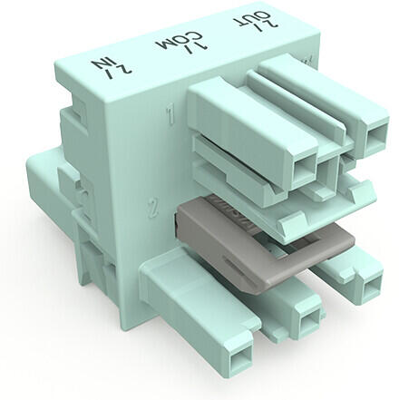

770-974/076-000 WAGO Device Connectors Image 1

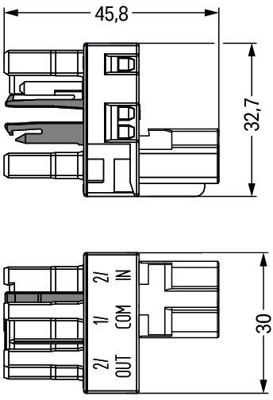

770-974/076-000 WAGO Device Connectors Image 2

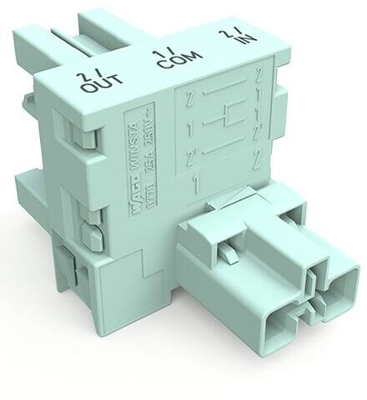

770-974/076-000 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
14.4585 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
14.4585 €

Distributor, 770-974/076-000, WAGO

The WINSTA MIDI distribution connector B coding is the pluggable solution for your application in control cabinets, on PCBs or for lighting connections. or greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector can be used for electrical currents up to 25 A. Thus the product is also suitable for high power loads. The WINSTA MIDI product line offers maximum flexibility for the installation. With its Push-in CAGE CLAMP spring pressure connection technology, it guarantees time-saving, error-free installation and offers customization for meeting an enormous variety of installation requirements.

Features

  • Simple circuits
  • With B coding for controllers, for example sun blinds and lighting fixtures
  • Custom-engineered solutions
  • Quick replacement of defective units during ongoing operation
Technical specifications
Filter Property Value
Connection spring-clamp connection
Product type H-distributor
Rated voltage IEC 250 V
Pin number 3 pole
Line filter present No
Power switch available No
Rated current UL/CSA 23 A
Assembly snap-in
Rated voltage UL/CSA 600 V
Type of locking Yes
Design straight
Rated current IEC 25 A
Colour light turquoise
Switch illuminated No
Fuse holder present No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
