770-940 | WAGO

Distributor 3-fold, 3 pole, spring-clamp connection, red, 770-940

Order No.: 44P7318
EAN: 4045454548254
MPN:
770-940
Series: WINSTA MIDI

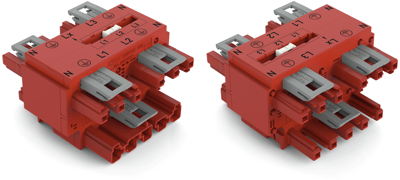

770-940 WAGO Device Connectors Image 1
770-940 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
34.7004 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
34.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
34.7004 €

3-way distribution, 770-940, WAGO

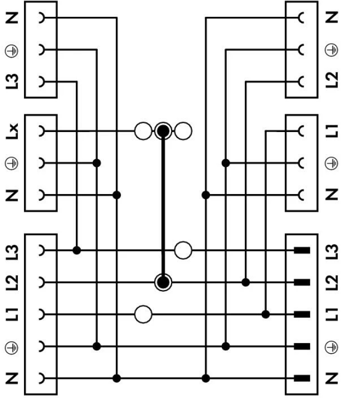

Three-phase to single-phase distribution connector, with phase selection, 5-pole/3-pole, code P, 1 input, 5 outputs, red.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 3 pole
Colour red
Rated current UL/CSA 23 A
Version 3-fold
Connection spring-clamp connection
Pin temperature 85 °C
Rated current IEC 25 A
Type of locking Yes
Product type distributor
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
