770-907 | WAGO

Distributor 3-fold, 3 pole, spring-clamp connection, red, 770-907

Order No.: 44P7309
EAN: 4045454459147
MPN:
770-907
Series: WINSTA MIDI

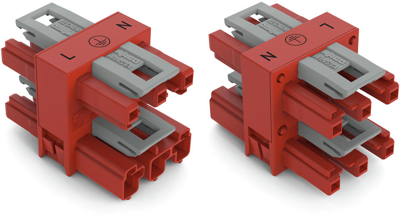

770-907 WAGO Device Connectors Image 1
770-907 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.4482 € *
Available: 45 pcs.
Total Price:
10.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.4482 €

3-way distribution, 770-907, WAGO

3-way distribution connector, 3-pole, code P, 1 input, 3 outputs, 2 locking levers, red.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 3 pole
Colour red
Rated current UL/CSA 23 A
Version 3-fold
Connection spring-clamp connection
Pin temperature 85 °C
Design straight
Rated current IEC 25 A
Type of locking Yes
Product type distributor
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
