770-823 | WAGO

Socket, 3 pole, spring-clamp connection, white, 770-823

Order No.: 44P7183
EAN: 4044918684675
MPN:
770-823
Series: WINSTA MIDI

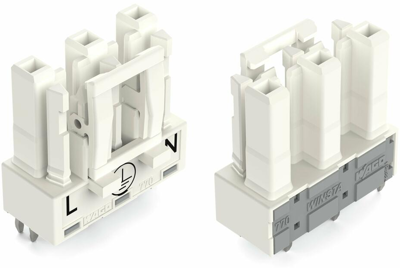

770-823 WAGO Device Connectors Image 1
770-823 WAGO Device Connectors Image 2
770-823 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.2967 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.2967 €

Socket, 770-823, WAGO

Socket for PCBs, straight, 3-pole, code A, white.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour white
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 23 A
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated voltage IEC 250 V
Pin number 3 pole
Version socket
Design straight
Connection spring-clamp connection
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
