770-7102 | WAGO

Plug, 2 pole, spring-clamp connection, blue, 770-7102

Order No.: 44P7095
EAN: 4050821854357
MPN:
770-7102
Series: WINSTA MIDI

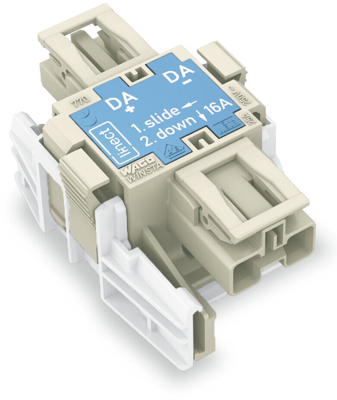

770-7102 WAGO Device Connectors Image 1
770-7102 WAGO Device Connectors Image 2
770-7102 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
7.6755 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
7.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.6755 €

Plug, 770-7102, WAGO

T-connector, 2-pole, code I, 1 input, 2 outputs, white.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated current UL/CSA 23 A
Pin temperature 85 °C
Design straight
Colour blue
Pin number 2 pole
Rated voltage IEC 250 V
Product type plug
Rated current IEC 25 A
Type of locking Yes
Connection spring-clamp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
