770-705/009-000 | WAGO

Socket, 5 pole, snap-in, spring-clamp connection, 0.5-4.0 mm², black, 770-705/009-000

Order No.: 44P7094
EAN: 4055143594165
MPN:
770-705/009-000
Series: WINSTA MIDI

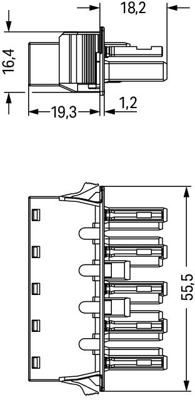

770-705/009-000 WAGO Device Connectors Image 1

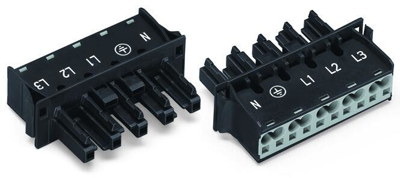

770-705/009-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.6291 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.6291 €

Socket, 770-705/009-000, WAGO

Snap-in socket, with protruding mating face, 5-pole, code A, 4.00 mm², black.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 400 V
Pin number 5 pole
Power switch available No
Colour black
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Connection spring-clamp connection
Assembly snap-in
Pin temperature 85 °C
Design straight
Rated current IEC 25 A
Type of locking Yes
Switch illuminated No
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
