770-677 | WAGO

T connector, 4 pole, white, 770-677

Order No.: 44P7079
EAN: 4044918935180
MPN:
770-677
Series: WINSTA MIDI

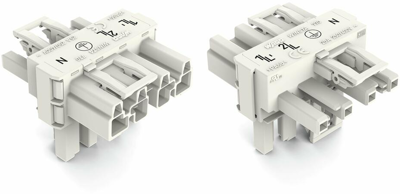

770-677 WAGO Device Connectors Image 1
770-677 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.9496 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.9496 €

T-distributor, 770-677, WAGO

T-distribution connector, 4-pole, code A, 1 input, 2 outputs, 3 locking levers, for flying leads, white.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour white
Design T-shape
Version T distributor
Rated voltage UL/CSA 600 V
Line filter present No
Rated current UL/CSA 23 A
Switch illuminated No
Type of locking Yes
Rated voltage IEC 400 V
Pin number 4 pole
Rated current IEC 25 A
Power switch available No
Pin temperature 85 °C
Fuse holder present No
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
