770-640 | WAGO

Plug, 3 pole, spring-clamp connection, black, 770-640

Order No.: 44P7059
EAN: 4045454530914
MPN:
770-640
Series: WINSTA MIDI
770-640 WAGO Device Connectors Image 1
770-640 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
30.2379 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
30.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
30.2379 €

Plug, 770-640, WAGO

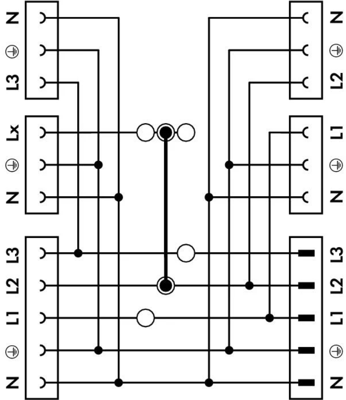

Three-phase to single-phase distribution connector, with phase selection, 5-pole/3-pole, code A, 1 input, 5 outputs, black.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 400 V
Pin number 3 pole
Colour black
Rated current UL/CSA 23 A
Connection spring-clamp connection
Pin temperature 85 °C
Rated current IEC 25 A
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
