770-6225 | WAGO

Plug, 5 pole, spring-clamp connection, white, 770-6225

Order No.: 44P7052
EAN: 4050821654278
MPN:
770-6225
Series: WINSTA MIDI

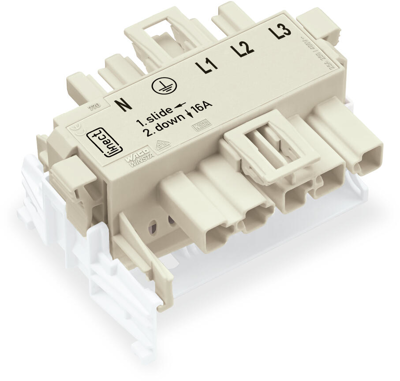

770-6225 WAGO Device Connectors Image 1
770-6225 WAGO Device Connectors Image 2
770-6225 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
11.3169 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
11.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.3169 €

Plug, 770-6225, WAGO

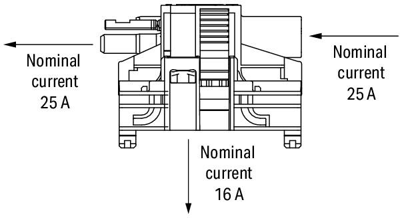

T-connector, 5-pole, code A, 1 input, 2 outputs, white.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Connection spring-clamp connection
Product type plug
Rated voltage IEC 400 V
Pin number 5 pole
Rated current UL/CSA 23 A
Rated voltage UL/CSA 600 V
Type of locking Yes
Design straight
Rated current IEC 25 A
Colour white
Pin temperature 85 °C
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
