Plug, 4 pole, spring-clamp connection, white, 770-6224

Order No.: 44P7051
EAN: 4050821102960
MPN:
770-6224
Series: WINSTA MIDI
770-6224 WAGO Device Connectors Image 1
770-6224 WAGO Device Connectors Image 2
770-6224 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
10.2102 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
10.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.2102 €

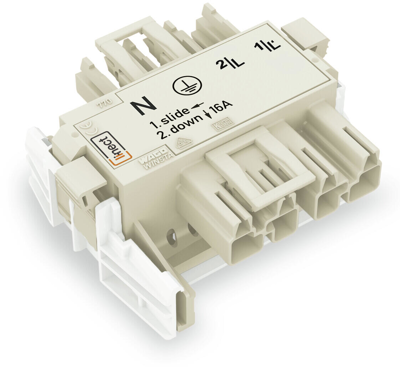

Plug, 770-6224, WAGO

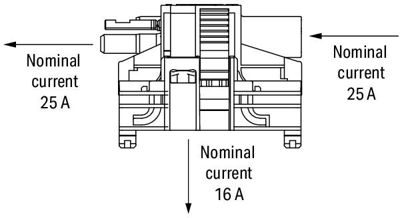

T-connector, 4-pole, code A, 1 input, 2 outputs, white.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Connection spring-clamp connection
Product type plug
Rated voltage IEC 400 V
Pin number 4 pole
Line filter present No
Power switch available No
Rated current UL/CSA 23 A
Rated voltage UL/CSA 600 V
Design straight
Rated current IEC 25 A
Colour white
Pin temperature 85 °C
Switch illuminated No
Fuse holder present No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
