770-611 | WAGO

Plug, 5 pole, spring-clamp connection, 0.5-4.0 mm², black, 770-611

Order No.: 43P2110
EAN: 4045454558406
MPN:
770-611
Series: WINSTA MIDI

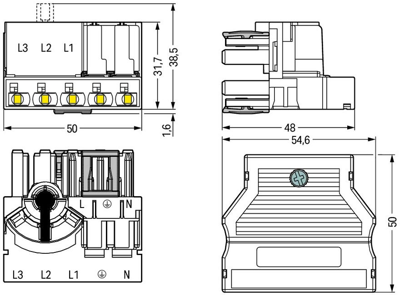

770-611 WAGO Device Connectors Image 1

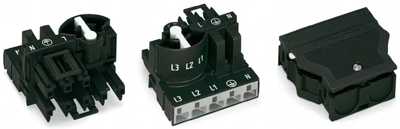

770-611 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.3018 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
19.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.3018 €

Plug, 770-611, WAGO

Three-phase to single-phase distribution connector, with phase selection, 5-pole, code A, 1 input, 2 outputs, with cable connection on the input side, black.

Features

  • Protection against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 400 V
Pin number 5 pole
Colour black
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Connection spring-clamp connection
Pin temperature 85 °C
Design straight
Rated current IEC 25 A
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
