770-609 | WAGO

Plug, 5 pole, spring-clamp connection, black, 770-609

Order No.: 46F8250
EAN: 4045454251383
MPN:
770-609
Series: WINSTA MINI

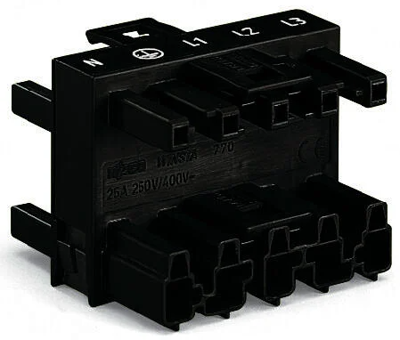

770-609 WAGO Device Connectors Image 1
770-609 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.0051 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
17.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
17.0051 €

Plug, 770-609, WAGO

3-way distribution connector, 5-pole, code A, 1 input, 3 outputs, black.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 400 V
Pin number 5 pole
Colour black
Rated current UL/CSA 23 A
Connection spring-clamp connection
Pin temperature 85 °C
Rated current IEC 25 A
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
