770-5001/117-000 | WAGO

Connector, 3 pole, snap-in, spring-clamp connection, black, 770-5001/117-000

Order No.: 44P8897
EAN: 4066966302158
MPN:
770-5001/117-000
Series: WINSTA MINI

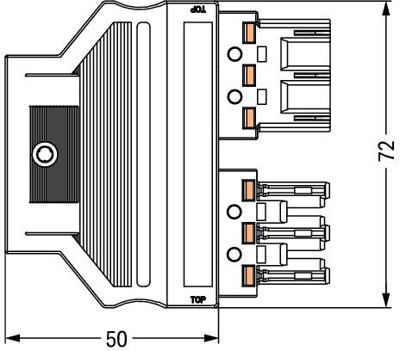

770-5001/117-000 WAGO Device Connectors Image 1

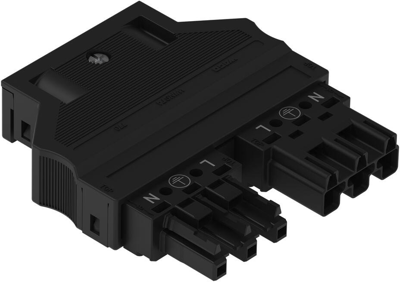

770-5001/117-000 WAGO Device Connectors Image 2

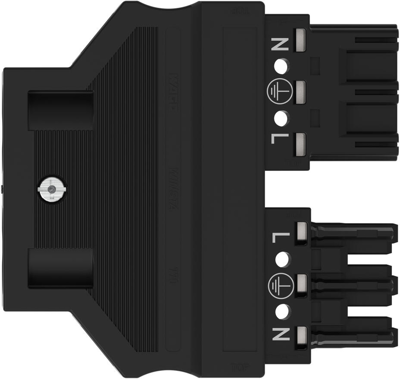

770-5001/117-000 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
20.5394 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
20.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
20.5394 €

Interconnecting cable, 770-5001/117-000, WAGO

The pre-assembled cable for interconnecting, known as Eca, is designed for use with 3-pole socket/plug and has the product code A.

Features

  • Protected against mismating and maintenance-free
  • Push-in CAGE CLAMP spring pressure connection technology allows solid conductors to be simply pushed into a unit.
  • Two wire connections per pole for loops or bridges
Technical specifications
Switch illuminated No
Colour black
Type of locking Yes
Rated current UL/CSA 16 A
Assembly snap-in
Rated voltage UL/CSA 600 V
Rated current IEC 20 A
Rated voltage IEC 250 V
Fuse holder present No
Pin number 3 pole
Version plug/socket
Design straight
Power switch available No
Connection spring-clamp connection
Line filter present No
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
