770-3105 | WAGO

Socket, 5 pole, spring-clamp connection, blue, 770-3105

Order No.: 44P6971
EAN: 4045454001285
MPN:
770-3105
Series: WINSTA MIDI

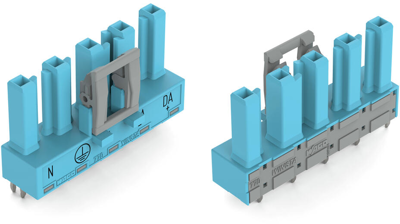

770-3105 WAGO Device Connectors Image 1

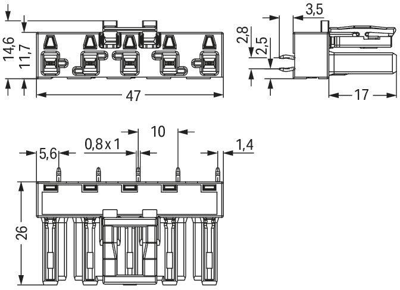

770-3105 WAGO Device Connectors Image 2

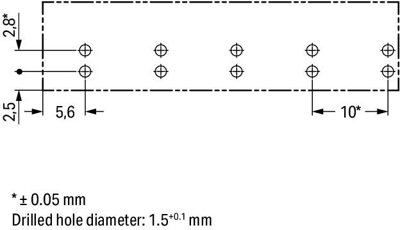

770-3105 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
3.7366 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.7366 €

Socket, 770-3105, WAGO

Socket for PCBs, straight, 5-pole, code I, blue.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour blue
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 23 A
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated voltage IEC 400 V
Pin number 5 pole
Version socket
Design straight
Connection spring-clamp connection
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
