770-305 | WAGO

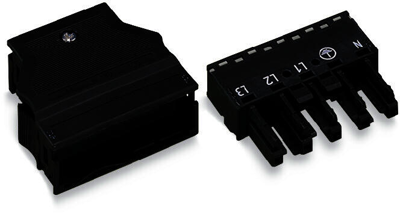

Socket, 5 pole, spring-clamp connection, 0.5-4.0 mm², black, 770-305
Unit Price (€ / pc.)
7.4256 € *
Available: 8 pcs.
Socket, 770-305, WAGO
Socket, with strain relief housing, 5-pole, code A, 4.00 mm², black.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 400 V | |
| Pin temperature | 85 °C | |
| Colour | black | |
| Rated voltage UL/CSA | 600 V | |
| Rated current UL/CSA | 23 A | |
| Design | straight | |
| Connection | spring-clamp connection | |
| Product type | socket | |
| Pin number | 5 pole | |
| Type of locking | Yes | |
| Rated current IEC | 25 A | |
| Cable cross-section | 0.5-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
