770-253 | WAGO

Plug, 3 pole, spring-clamp connection, 0.5-4.0 mm², gray, 770-253

Order No.: 44P6915
EAN: 4044918253963
MPN:
770-253
Series: WINSTA MIDI

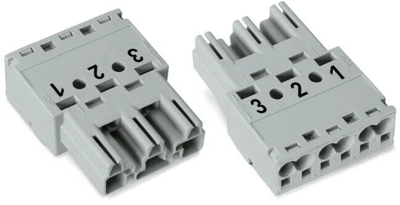

770-253 WAGO Device Connectors Image 1

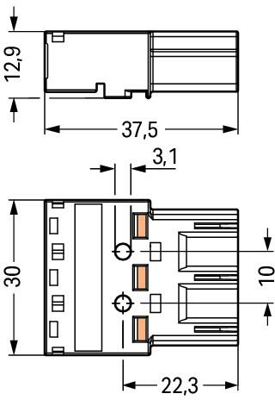

770-253 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.975 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
2.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.975 €

Plug, 770-253, WAGO

Plug, 3-pole, 4.00 mm², gray.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Connection Federklemmanschluss
Version Stecker
Design gerade
Colour grau
Cable cross-section 0,5-4,0 mm²
Rated voltage IEC 250 V
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated current UL/CSA 23 A
Pin number 3-polig
Pin temperature 85 °C
Type of locking Ja
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
