770-243 | WAGO
Socket, 3 pole, snap-in, push-in, 0.5-4.0 mm², gray, 770-243
Unit Price (€ / pc.)
3.5700 € *
Standard delivery time from the manufacturer is: 3 Weeks

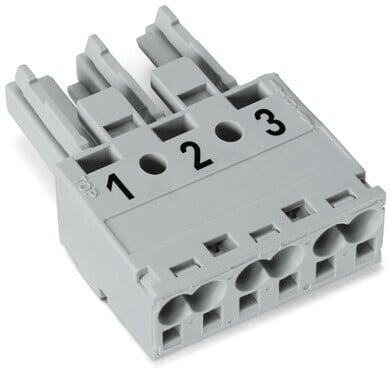

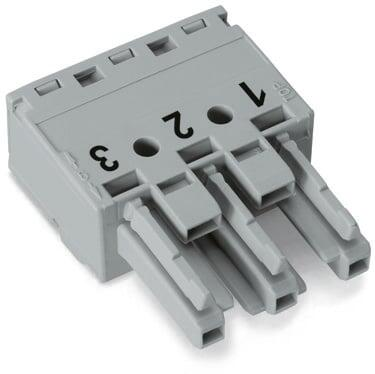

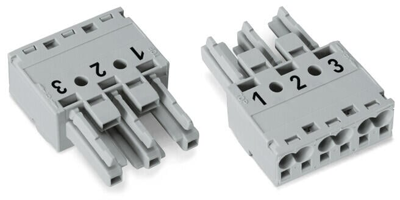

Socket, 770-243, WAGO
The WINSTA MIDI female connector/socket 3-pole provides the foundation for assembly of fine-stranded and solid conductors. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector is used for electrical currents up to 25 A. Thus the product is especially suitable for high power loads. The WINSTA MIDI Pluggable Connection System with Push-in CAGE CLAMP spring pressure connection technology facilitates safe electrification.
Features
- Effective protection against mismating
- With B coding for controllers such as sun blinds and lighting fixtures
- Ready to install and use immediately
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 600 V | |
| Rated current UL/CSA | 23 A | |
| Cable cross-section | 0.5-4.0 mm² | |
| Fuse holder present | No | |
| Design | straight | |
| Colour | gray | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | socket | |
| Line filter present | No | |
| Rated current IEC | 25 A | |
| Type of locking | Yes | |
| Connection | push-in | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
