770-2315 | WAGO

Plug, 5 pole, snap-in, spring-clamp connection, 0.5-4.0 mm², red, 770-2315

Order No.: 44P6885
EAN: 4055143375894
MPN:
770-2315
Series: WINSTA MIDI

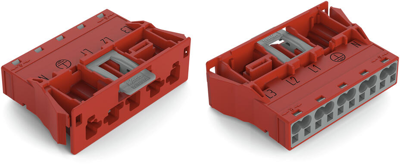

770-2315 WAGO Device Connectors Image 1

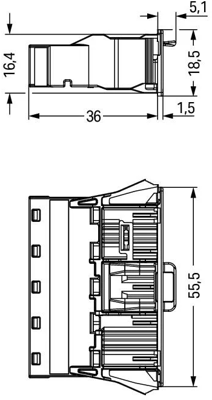

770-2315 WAGO Device Connectors Image 2

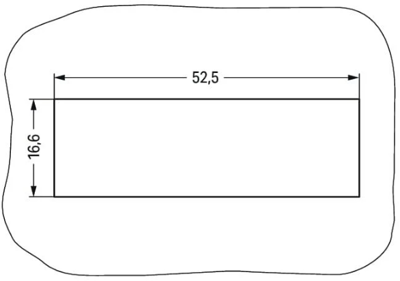

770-2315 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.7838 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.7838 €

Plug, 770-2315, WAGO

Snap-in plug, 5-pole, code P, 4.00 mm², red.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour red
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 23 A
Assembly snap-in
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated voltage IEC 400 V
Cable cross-section 0.5-4.0 mm²
Pin number 5 pole
Version plug
Design straight
Connection spring-clamp connection
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
