770-224 | WAGO

Socket, 4 pole, spring-clamp connection, 0.5-4.0 mm², white, 770-224

Order No.: 44P6879
EAN: 4044918252386
MPN:
770-224
Series: WINSTA MIDI

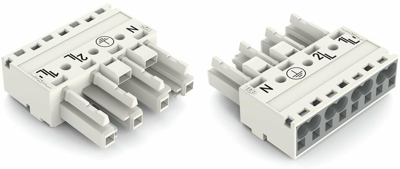

770-224 WAGO Device Connectors Image 1
770-224 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.9865 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.9865 €

Socket, 770-224, WAGO

Socket, 4-pole, code A, 4.00 mm², white.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Switch illuminated No
Rated voltage UL/CSA 600 V
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Pin temperature 85 °C
Fuse holder present No
Design straight
Colour white
Pin number 4 pole
Rated voltage IEC 400 V
Product type socket
Line filter present No
Rated current IEC 25 A
Connection spring-clamp connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
