770-223/035-050 | WAGO

Socket, 3 pole, snap-in, push-in, 0.5-4.0 mm², white, 770-223/035-050

Order No.: 44P8878
EAN: 4055143369336
MPN:
770-223/035-050
Series: WINSTA MIDI

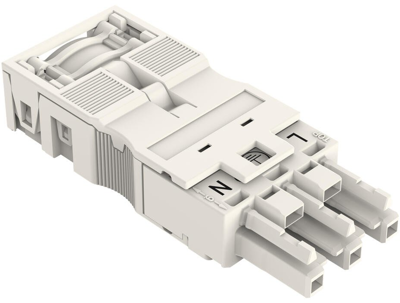

770-223/035-050 WAGO Device Connectors Image 1

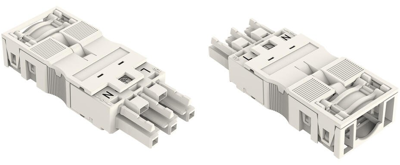

770-223/035-050 WAGO Device Connectors Image 2

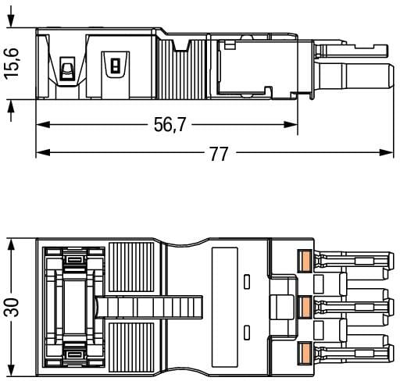

770-223/035-050 WAGO Device Connectors Image 3

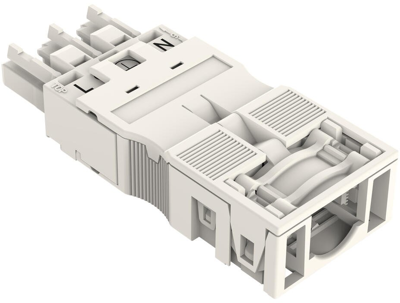

770-223/035-050 WAGO Device Connectors Image 4
770-223/035-050 WAGO Device Connectors Image 5
Image may differ
Unit Price (€ / pc.)
5.4859 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.4859 €

Socket, 770-223/035-050, WAGO

The 770-223/035-050 is a WINSTA MIDI female connector/socket 3-pole that allows fast, efficient, error-free installation in numerous applications. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This pluggable installation connector can be employed for a load of up to 25 A. As a result, it can also be used for high power loads. The WINSTA MIDI Pluggable Connection System with Push-in CAGE CLAMP spring pressure connection technology facilitates exemplary electrification. Thanks to the included test slot, connections can be checked even when they are plugged in.

Features

  • Simple circuits
  • With A coding for use in many general mains applications
  • Custom-engineered solutions
  • Rapid, structured electrical installation
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 3 pole
Power switch available No
Colour white
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Connection push-in
Assembly snap-in
Fuse holder present No
Line filter present No
Design straight
Rated current IEC 25 A
Type of locking Yes
Switch illuminated No
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
