770-205 | WAGO

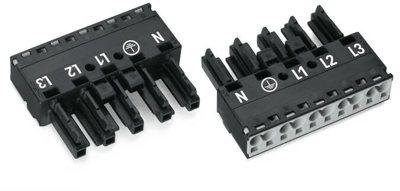

Socket, 5 pole, spring-clamp connection, 0.5-4.0 mm², black, 770-205

Order No.: 44P6868
EAN: 4044918252324
MPN:
770-205
Series: WINSTA MIDI
770-205 WAGO Device Connectors Image 1
770-205 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.8671 € *
Available: 40 pcs.
Total Price:
4.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.8671 €

Socket, 770-205, WAGO

Socket, 5-pole, code A, 4.00 mm², black.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 400 V
Pin number 5 pole
Colour black
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Connection spring-clamp connection
Pin temperature 85 °C
Design straight
Rated current IEC 25 A
Type of locking Yes
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
