770-204 | WAGO

Socket, 4 pole, spring-clamp connection, 0.5-4.0 mm², black, 770-204

Order No.: 44P6867
EAN: 4044918252270
MPN:
770-204
Series: WINSTA MIDI

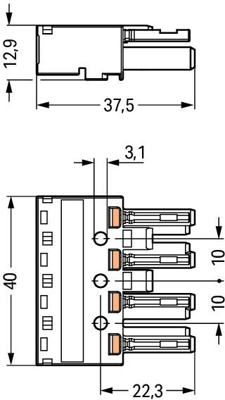

770-204 WAGO Device Connectors Image 1

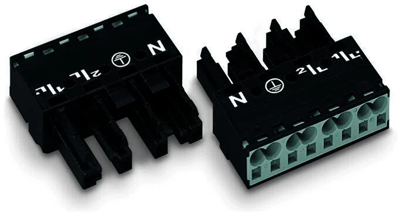

770-204 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.9865 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.9865 €

Socket, 770-204, WAGO

Socket, 4-pole, code A, 4.00 mm², black.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour black
Design straight
Version socket
Rated voltage UL/CSA 600 V
Line filter present No
Rated current UL/CSA 23 A
Switch illuminated No
Cable cross-section 0.5-4.0 mm²
Connection spring-clamp connection
Rated voltage IEC 400 V
Pin number 4 pole
Rated current IEC 25 A
Power switch available No
Pin temperature 85 °C
Fuse holder present No
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
