Socket, 3 pole, snap-in, push-in, 0.5-4.0 mm², black, 770-203
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.0940 € *
Standard delivery time from the manufacturer is: 3 Weeks

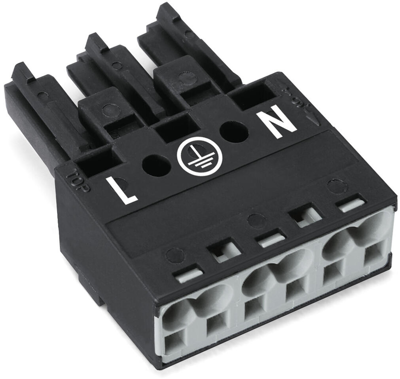

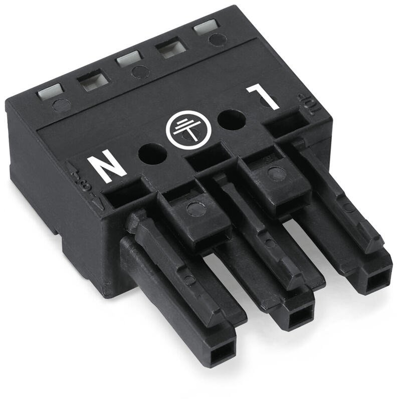

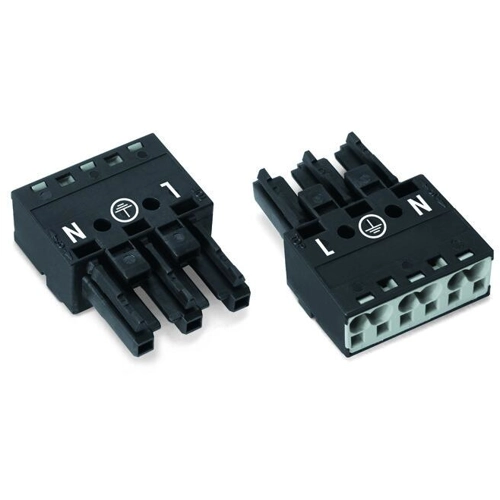

Socket, 770-203, WAGO
The WINSTA MIDI female connector/socket rated current 25 A is ideally tailored to the very strict requirements of building installation. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This product has a current rating of 25 A – so it is also suitable for robust loads.WINSTA MIDI with Push-in CAGE CLAMP spring pressure connection technology is used in a broad range of individual products you can use for quick, easy, flexible, and secure electrical installation.
Features
- Effective protection against mismating
- With A coding for use in many general mains applications

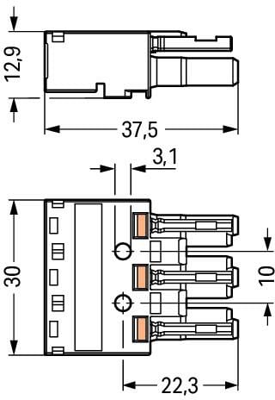

- Exact dimensions
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | socket | |
| Pin number | 3 pole | |
| Colour | black | |
| Connection | push-in | |
| Assembly | snap-in | |
| Design | straight | |
| Cable cross-section | 0.5-4.0 mm² | |
| Power switch available | No | |
| Switch illuminated | No | |
| Fuse holder present | No | |
| Line filter present | No | |
| Type of locking | Yes | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated current UL/CSA | 23 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
