770-1781 | WAGO
H-distributor, 4 pole, gray, 770-1781
Unit Price (€ / pc.)
13.0305 € *
Standard delivery time from the manufacturer is: 5 Weeks

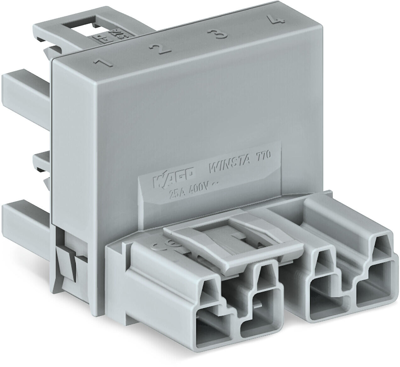

H-distributor, 770-1781, WAGO
H-distribution connector, 4-pole, code B, 1 input, 2 outputs, outputs on one side, 3 locking levers, for flying leads, gray.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 25 A | |
| Rated voltage UL/CSA | 600 V | |
| Rated voltage IEC | 400 V | |
| Pin temperature | 85 °C | |
| Switch illuminated | No | |
| Product type | H-distributor | |
| Rated current UL/CSA | 23 A | |
| Type of locking | Yes | |
| Pin number | 4 pole | |
| Power switch available | No | |
| Line filter present | No | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
