770-1768 | WAGO

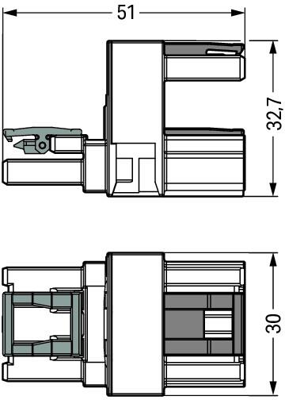

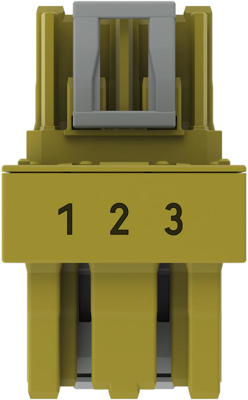

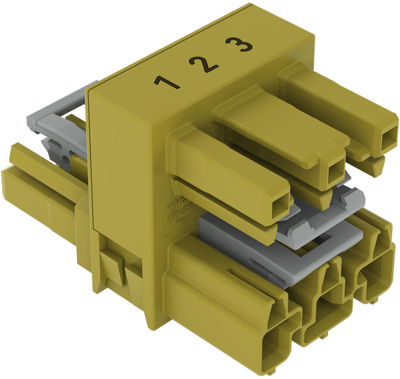

H-distributor, 3 pole, snap-in, spring-clamp connection, light green, 770-1768
Unit Price (€ / pc.)
10.0912 € *
Standard delivery time from the manufacturer is: 5 Weeks
Distribution connector, 770-1768, WAGO
The 770-1768 is a WINSTA MIDI distribution connector that allows flexible, error-free installation in numerous possible uses. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. This pluggable installation connector can be used for electrical currents up to 25 A. Thus the product is especially suitable for high power loads. WINSTA MIDI with Push-in CAGE CLAMP spring pressure connection technology is found in a broad range of individual products you can use for quick, easy and maximally flexible installation.
Features
- Simple circuits
- With B coding for controllers, for example sun blinds and lighting fixtures
- Ready to install and use immediately
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 600 V | |
| Rated current UL/CSA | 16 A | |
| Fuse holder present | No | |
| Design | straight | |
| Colour | light green | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | H-distributor | |
| Line filter present | No | |
| Rated current IEC | 25 A | |
| Type of locking | Yes | |
| Connection | spring-clamp connection | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
