770-1767 | WAGO

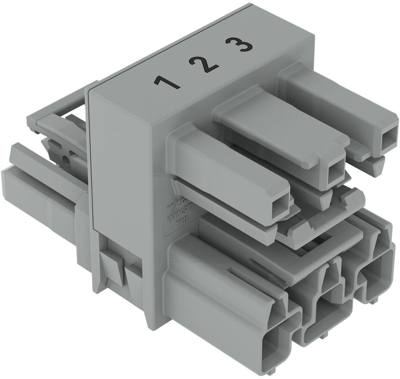

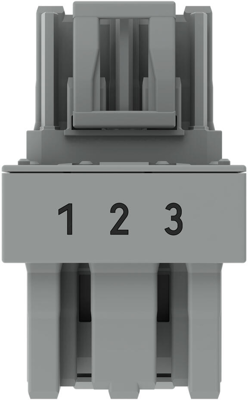

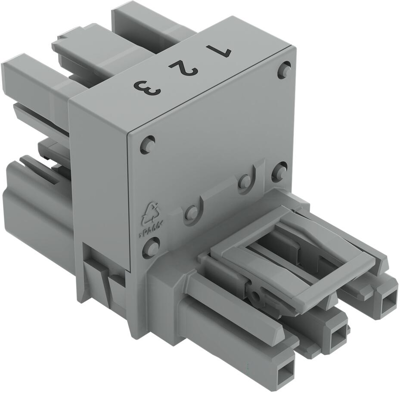

H-distributor, 3 pole, snap-in, spring-clamp connection, gray, 770-1767
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
10.0912 € *
Standard delivery time from the manufacturer is: 5 Weeks
Distribution connector, 770-1767, WAGO
The WINSTA MIDI distribution connector B coding provides the foundation for installation of fine-stranded and solid conductors. It allows flexible, error-free installation in numerous possible uses. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector can be used for a current load of up to 25 A. Therefore, it can also be used for high power loads. The WINSTA MIDI product line guarantees total flexibility for the installation. With its Push-in CAGE CLAMP spring pressure connection technology,
Features
- With B coding for use in process automation, such as lighting technology
- Custom-engineered solutions
- Fast, secure installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | H-distributor | |
| Pin number | 3 pole | |
| Colour | gray | |
| Connection | spring-clamp connection | |
| Assembly | snap-in | |
| Design | straight | |
| Power switch available | No | |
| Switch illuminated | No | |
| Fuse holder present | No | |
| Line filter present | No | |
| Type of locking | Yes | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated current UL/CSA | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
