Distributor 3-fold, 5 pole, snap-in, spring-clamp connection, pink, 770-1746/080-000
Distribution connector, 770-1746/080-000, WAGO

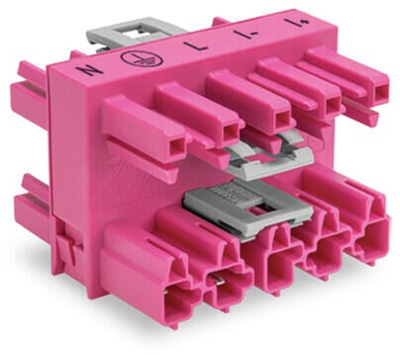

The 770-1746/080-000 is a WINSTA MIDI distribution connector with protection against mismating.The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This pluggable installation connector can be used for electrical currents up to 25 A. Thus the product is also suitable for high power loads. The WINSTA MIDI product line offers total flexibility for the installation. With its Push-in CAGE CLAMP spring pressure connection technology, it ensures time-saving, error-free installation and offers customization for meeting an enormous variety of installation requirements.
Features
- With B coding for use in process automation, such as lighting technology
- Ready to install and use immediately
- Convenient installation and commissioning
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Rated voltage IEC | 400 V | |
| Pin number | 5 pole | |
| Power switch available | No | |
| Colour | pink | |
| Rated current UL/CSA | 23 A | |
| Version | 3-fold | |
| Connection | spring-clamp connection | |
| Assembly | snap-in | |
| Fuse holder present | No | |
| Line filter present | No | |
| Design | straight | |
| Rated current IEC | 25 A | |
| Type of locking | Yes | |
| Switch illuminated | No | |
| Product type | distributor |
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
