770-1743/080-000 | WAGO

T connector, 5 pole, snap-in, spring-clamp connection, pink, 770-1743/080-000

Order No.: 44P8913
EAN: 4055143212182
MPN:
770-1743/080-000
Series: WINSTA MINI

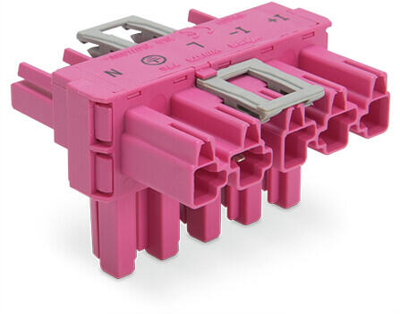

770-1743/080-000 WAGO Device Connectors Image 1

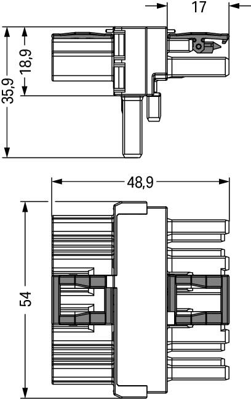

770-1743/080-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.5910 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
10.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.5910 €

Distribution connector, 770-1743/080-000, WAGO

The WINSTA MIDI distribution connector rated current 25 A so it is suitable for high power loads. . The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. The WINSTA MIDI product line allows maximum flexibility for the installation of applications. Through its Push-in CAGE CLAMP spring pressure connection technology, it guarantees time-saving, error-free installation and offers customization and flexibility for meeting various installation requirements.

Features

  • Simple circuits
  • For automation controllers
  • Ready for immediate use
  • Quick replacement of defective units during ongoing operation
Technical specifications
Filter Property Value
Switch illuminated No
Assembly snap-in
Rated voltage UL/CSA 600 V
Rated current UL/CSA 23 A
Fuse holder present No
Design T-shape
Colour pink
Pin number 5 pole
Rated voltage IEC 400 V
Product type T distributor
Line filter present No
Rated current IEC 25 A
Type of locking Yes
Connection spring-clamp connection
Power switch available No
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
