770-1716 | WAGO

Plug, 3 pole, spring-clamp connection, pink, 770-1716

Order No.: 44P6843
EAN: 4050821687672
MPN:
770-1716
Series: WINSTA MIDI
770-1716 WAGO Device Connectors Image 1
770-1716 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.4363 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
10.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.4363 €

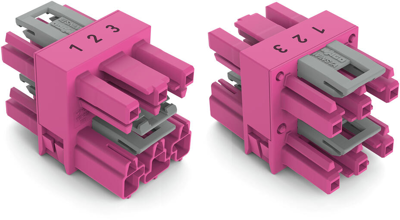

Plug, 770-1716, WAGO

3-way distribution connector, 3-pole, code B, 1 input, 3 outputs, pink.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour pink
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 23 A
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated voltage IEC 250 V
Pin number 3 pole
Version plug
Connection spring-clamp connection
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
