770-1705 | WAGO
Distributor 3-fold, 2 pole, spring-clamp connection, green, 770-1705
Unit Price (€ / pc.)
9.6509 € *
Standard delivery time from the manufacturer is: 3 Weeks

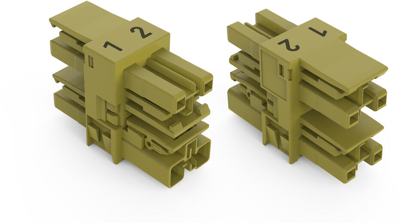

3-way distribution connector, 770-1705, WAGO
3-way distribution connector, 2-pole, code B, 1 input, 3 outputs, light green.
Features
- Protection against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Colour | green | |
| Connection | spring-clamp connection | |
| Type of locking | Yes | |
| Rated current UL/CSA | 23 A | |
| Pin temperature | 85 °C | |
| Rated voltage IEC | 250 V | |
| Version | 3-fold | |
| Product type | distributor | |
| Pin number | 2 pole | |
| Rated current IEC | 25 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
