770-1701 | WAGO

T-distributor, 2 pole, spring-clamp connection, 2.5 mm², gray, 770-1701

Order No.: 44P6833
EAN: 4050821531265
MPN:
770-1701
Series: 770
WAGO
default L
front L
Image may differ
Unit Price (€ / pc.)
4.165 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.17 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.165 €

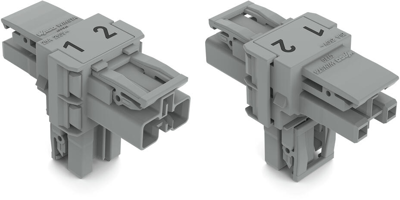

T-distributor, 770-1701, WAGO

T-distribution connector, 2-pole, code B, 1 input, 2 outputs, 3 locking levers, for flying leads, gray.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Connection spring-clamp connection
Version T-distributor
Design T-shape
Colour gray
Cable cross-section 2.5 mm²
Rated voltage IEC 250 V
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated current UL/CSA 23 A
Pin number 2 pole
Pin temperature 85 °C
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
