770-1610 | WAGO

H-distributor, 2 pole, pink, 770-1610

Order No.: 44P6803
EAN: 4055143561815
MPN:
770-1610
Series: WINSTA MIDI
770-1610 WAGO Device Connectors Image 1
770-1610 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.6406 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.6406 €

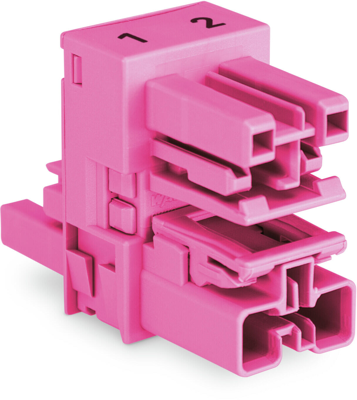

H-distributor, 770-1610, WAGO

H-distribution connector, 2-pole, code B, 1 input, 2 outputs, outputs on both sides, 2 locking levers, pink.

Features

  • Effective protection against mismating
  • Quick replacement of defective units during ongoing operation
  • Flammability class per UL94: V0

Applications

  • For automation controllers
  • For lighting applications
Technical specifications
Colour pink
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 23 A
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated voltage IEC 250 V
Pin number 2 pole
Version H-distributor
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
