770-1353 | WAGO

Plug, 3 pole, spring-clamp connection, 0.5-4.0 mm², orange, 770-1353

Order No.: 44P6789
EAN: 4044918254021
MPN:
770-1353
Series: WINSTA MIDI

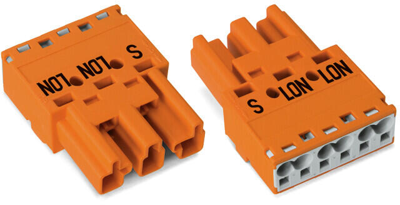

770-1353 WAGO Device Connectors Image 1
770-1353 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.975 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.975 €

Plug, 770-1353, WAGO

Socket, 4-pole, code R, 4.00 mm², orange.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour orange
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 23 A
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated voltage IEC 250 V
Cable cross-section 0.5-4.0 mm²
Pin number 3 pole
Version plug
Design straight
Connection spring-clamp connection
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
