770-1334 | WAGO

Plug, 4 pole, spring-clamp connection, 0.5-4.0 mm², green, 770-1334

Order No.: 44P6784
EAN: 4045454081393
MPN:
770-1334
Series: WINSTA MIDI

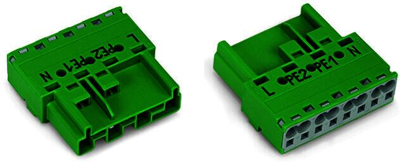

770-1334 WAGO Device Connectors Image 1
770-1334 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.3197 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.3197 €

Plug, 770-1334, WAGO

Plug, 4-pole, code Q.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Switch illuminated No
Rated voltage UL/CSA 600 V
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Pin temperature 85 °C
Fuse holder present No
Design straight
Colour green
Pin number 4 pole
Rated voltage IEC 400 V
Product type plug
Line filter present No
Rated current IEC 25 A
Connection spring-clamp connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
