770-1315 | WAGO

Plug, 5 pole, spring-clamp connection, 0.5-4.0 mm², red, 770-1315

Order No.: 44P6779
EAN: 4045454435127
MPN:
770-1315
Series: WINSTA MIDI
770-1315 WAGO Device Connectors Image 1
770-1315 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.3554 € *
Available: 40 pcs.
Total Price:
4.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.3554 €

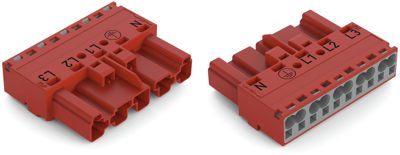

Plug, 770-1315, WAGO

Plug, 5-pole, 4.00 mm², red.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Colour red
Pin temperature 85 °C
Type of locking Yes
Rated current UL/CSA 23 A
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated voltage IEC 400 V
Cable cross-section 0.5-4.0 mm²
Pin number 5 pole
Version plug
Design straight
Power switch available No
Connection spring-clamp connection
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
