770-1305 | WAGO

Socket, 5 pole, spring-clamp connection, 0.5-4.0 mm², red, 770-1305

Order No.: 44P6776
EAN: 4045454435103
MPN:
770-1305
Series: WINSTA MIDI

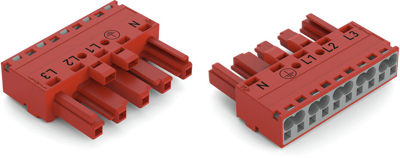

770-1305 WAGO Device Connectors Image 1

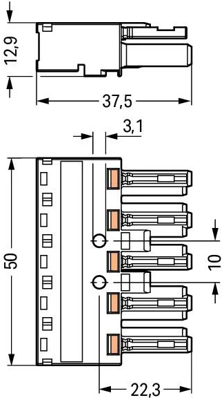

770-1305 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.5811 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.5811 €

Socket, 770-1305, WAGO

Socket, 5-pole, code P, 4.00 mm², red.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Connection Federklemmanschluss
Version Buchse
Design gerade
Colour rot
Cable cross-section 0,5-4,0 mm²
Rated voltage IEC 400 V
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated current UL/CSA 23 A
Power switch available No
Pin number 5-polig
Pin temperature 85 °C
Type of locking Ja
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
