770-1303 | WAGO

Socket, 3 pole, spring-clamp connection, 0.5-4.0 mm², red, 770-1303

Order No.: 44P6775
EAN: 4045454389666
MPN:
770-1303
Series: WINSTA MIDI

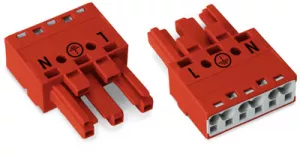

770-1303 WAGO Device Connectors Image 1

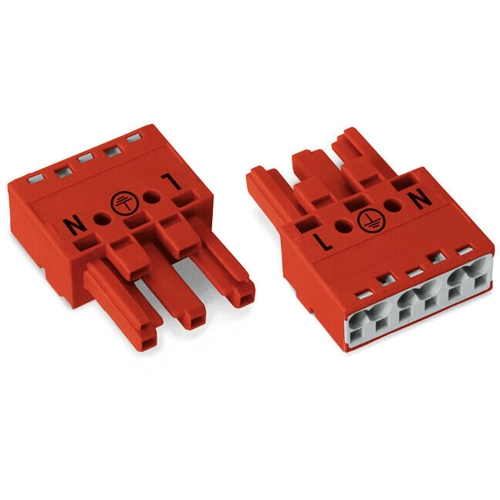

770-1303 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.4034 € *
Available: 57 pcs.
Total Price:
3.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4034 €

Socket, 770-1303, WAGO

Socket, 3-pole, code P, 4.00 mm², red.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 3 pole
Power switch available No
Colour red
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Connection spring-clamp connection
Pin temperature 85 °C
Design straight
Rated current IEC 25 A
Type of locking Yes
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
