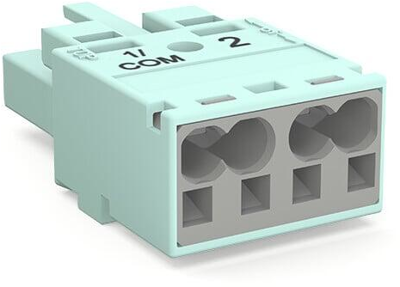

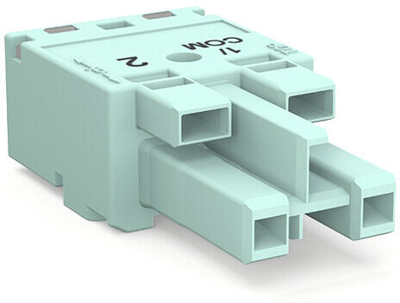

Socket, 770-1242/076-000, WAGO
The WINSTA MIDI female connector/socket 2-pole allows assembly of solid and fine-stranded conductors. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector is used for electrical currents up to 25 A. Thus the product is ideally suitable for high power loads. The WINSTA MIDI product line offers flexibility for the electrical installation. With its Push-in CAGE CLAMP spring pressure connection technology, it ensures error-free, time-saving installation and offers flexibility and customization for meeting an enormous variety of installation requirements.
Features
- Effective protection against mismating
- With B coding for use in automation of processes, such as lighting technology, among other examples
- Custom-engineered solutions
- Quick replacement of defective units during ongoing operation
