770-115 | WAGO

Plug, 5 pole, cable assembly, spring-clamp connection, 0.5-4.0 mm², black, 770-115

Order No.: 46F8216
EAN: 4044918254441
MPN:
770-115
Series: WINSTA MINI

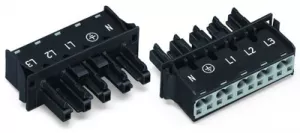

770-115 WAGO Device Connectors Image 1

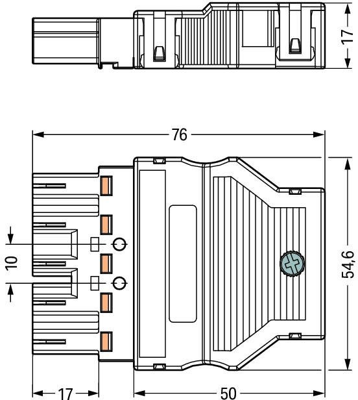

770-115 WAGO Device Connectors Image 2

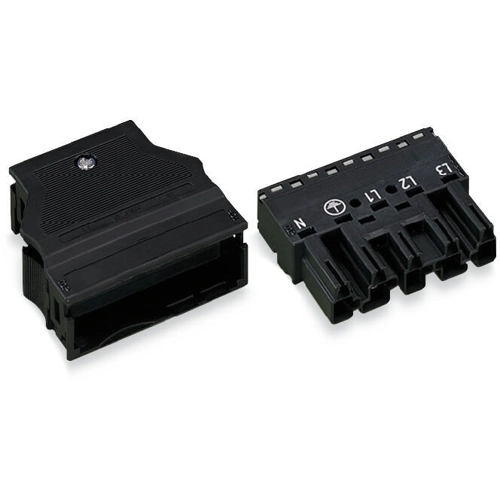

770-115 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
7.8302 € *
Available: 8 pcs.
Total Price:
7.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.8302 €

Plug, 770-115, WAGO

Plug, with strain relief housing, 5-pole, 4.00 mm², black.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 400 V
Pin number 5 pole
Power switch available No
Colour black
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Connection spring-clamp connection
Assembly cable assembly
Pin temperature 85 °C
Design straight
Rated current IEC 25 A
Cable diameter 9 to 13 mm
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
