770-1115/022-000 | WAGO

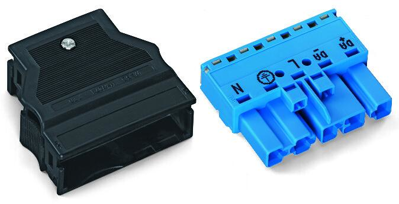

Plug, 5 pole, snap-in, spring-clamp connection, 0.5-4.0 mm², blue, 770-1115/022-000

Order No.: 44P8911
EAN: 4050821223009
MPN:
770-1115/022-000
Series: WINSTA MINI
770-1115/022-000 WAGO Device Connectors
Image may differ
Unit Price (€ / pc.)
7.3304 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.3304 €

Plug, 770-1115/022-000, WAGO

The WINSTA MIDI male connector/plug with protection against mismating allows installation of solid and fine-stranded conductors. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector can be used for electrical currents up to 25 A. Thus the product is especially suitable for high power loads. The WINSTA MIDI Pluggable Connection System with Push-in CAGE CLAMP spring pressure connection technology facilitates safe electrification.

Features

  • For automation controllers
  • With I coding for controlling light (DALI standard)
  • Ready to install and use immediately
  • Quick replacement of defective units during ongoing operation
Technical specifications
Filter Property Value
Switch illuminated No
Assembly snap-in
Rated voltage UL/CSA 600 V
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Fuse holder present No
Design straight
Colour blue
Pin number 5 pole
Rated voltage IEC 400 V
Product type plug
Line filter present No
Rated current IEC 25 A
Type of locking Yes
Connection spring-clamp connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
