770-1102 | WAGO
Socket, 2 pole, spring-clamp connection, 0.5-4.0 mm², blue, 770-1102
Unit Price (€ / pc.)
2.6537 € *
Standard delivery time from the manufacturer is: 4 Weeks

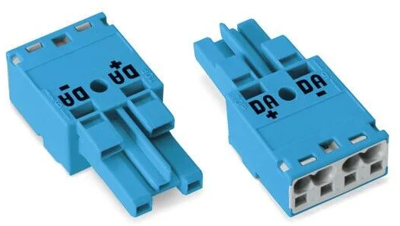

Socket, 770-1102, WAGO
Socket, 2-pole, code I, 4.00 mm², blue.
Features
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
- Fast, secure installation
Applications
- For signal transmission
- For power transmission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Colour | blue | |
| Connection | spring-clamp connection | |
| Type of locking | Yes | |
| Cable cross-section | 0.5-4.0 mm² | |
| Design | straight | |
| Rated current UL/CSA | 23 A | |
| Pin temperature | 85 °C | |
| Rated voltage IEC | 250 V | |
| Product type | socket | |
| Pin number | 2 pole | |
| Rated current IEC | 25 A | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
