272-403/272-486 | WAGO

Socket, 3 pole, push-wire connection, 2.5 mm², white/gray, 272-403/272-486

Order No.: 44P0212
EAN: 4044918406161
MPN:
272-403/272-486
Series: 272
272-403/272-486 WAGO Device Connectors
Image may differ
Unit Price (€ / pc.)
3.1535 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.1535 €

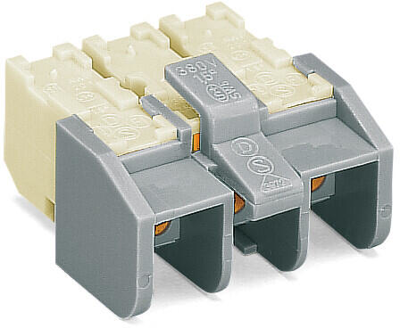

Socket, 272-403/272-486, WAGO

Power supply connector without ground contact, without push-buttons, without snap-in mounting feet, 3-pole, 2.50 mm², white/gray.

Features

  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class per UL94: V2
Technical specifications
Filter Property Value
Rated voltage IEC 400 V
Pin number 3 pole
Colour white/gray
Cable cross-section 2.5 mm²
Connection push-wire connection
Design straight
Rated current IEC 16 A
Type of locking No
Switch illuminated Yes
Product type socket
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
