267-521 | WAGO
Plug, 7 pole, push-wire connection, 2.5 mm², white, 267-521
Unit Price (€ / pc.)
4.0222 € *
Standard delivery time from the manufacturer is: 4 Weeks

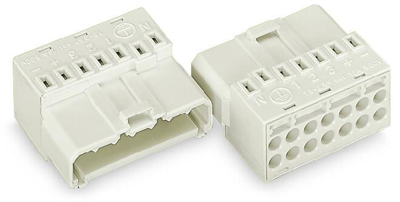

Plug, 267-521, WAGO
Male connector, without ground contact, 7-pole, 2.50 mm², white.
Features
- Overvoltage category: III
- Pollution degree: 2
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 500 V | |
| Pin number | 7 pole | |
| Power switch available | No | |
| Colour | white | |
| Cable cross-section | 2.5 mm² | |
| Connection | push-wire connection | |
| Fuse holder present | No | |
| Line filter present | No | |
| Pin temperature | 105 °C | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Type of locking | No | |
| Switch illuminated | No | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
