267-501/002-000 | WAGO
Socket, 7 pole, cable assembly, spring-clamp connection, 2.5 mm², white, 267-501/002-000
Unit Price (€ / pc.)
3.8437 € *
Standard delivery time from the manufacturer is: 4 Weeks
Socket, 267-501/002-000, WAGO

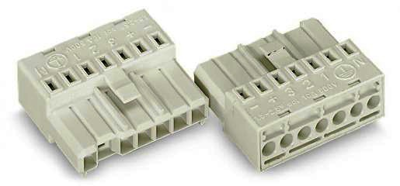

Female connector, without ground contact, 7-pole, white.
Features
- Overvoltage category: III
- Pollution degree: 2
- Flammability class per UL94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 16 A | |
| Connection | spring-clamp connection | |
| Rated voltage IEC | 500 V | |
| Switch illuminated | No | |
| Product type | socket | |
| Assembly | cable assembly | |
| Type of locking | No | |
| Pin number | 7 pole | |
| Power switch available | No | |
| Line filter present | No | |
| Design | straight | |
| Colour | white | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
