267-437 | WAGO

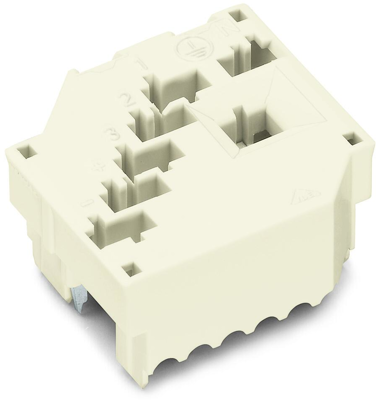

Cable fastener, 7 pole, IDC connection, 2.5 mm², white, 267-437

Order No.: 43P9997
EAN: 4044918997836
MPN:
267-437
Series: 267
267-437 WAGO Device Connectors
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8326 €

Conductor support, 267-437, WAGO

Conductor support, cover, with direct ground contact, 7-pole, 2.50 mm², white.

Features

  • Compact design
  • Future system expansions possible
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Colour white
Pin number 7 pole
Cable cross-section 2.5 mm²
Rated voltage IEC 500 V
Product type cable fastener
Line filter present No
Fuse holder present No
Connection IDC connection
Power switch available No
Design straight
Pin temperature 105 °C
Type of locking No
Rated current IEC 6 A
Switch illuminated No
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
